24ft Cruising Houseboat, Design #216

For gentle cruising on inland or sheltered waters this little ship would be hard to beat.  The concept is a boat that works as an RV on the road providing accommodation in parks and campgrounds, but which can then be launched to explore interesting waterways where ever they might be found. The dimensions are chosen to maximise volume with trailerable limits. The interior provides comfortable accommodation for two.

Construction: Plywood sheathed in glass and epoxy

Length: 24 ft 0 in
Length Waterline 23ft 6ins
Beam: 8 ft 0 in
Draft 2ft 0ins
Displacement: 6000 lbs
Power 25HP inboard Diesel
Speed   6 knots max
Building time: 3500 hours
Skill level: intermediate

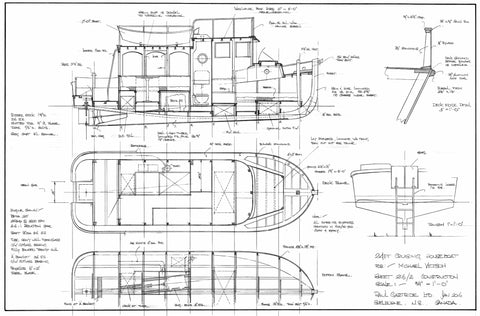

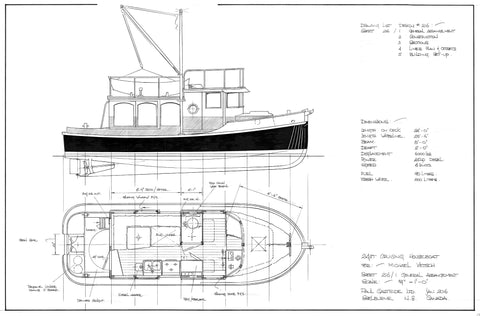

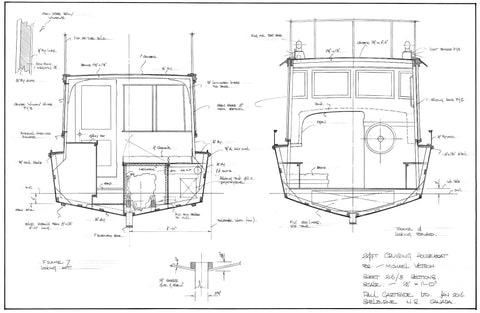

Design #216: 5 Sheets
