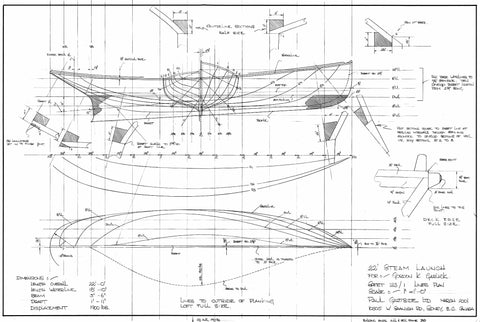

22 ft Steam Launch, Design #123

We built this lovely fantail launch in 2001 for a Washington State customer. For that boat, construction was double fore and aft planking over bent frames - see construction photos in Custom Building Projects. She is powered by a single cylinder steam engine of 2¼ in. bore and 4 in. stroke developing 2.7 HP at 350 RPM. The propeller is 18 in. x 30 in. three blade.

In the stock plan version, a layer of strip planking is laid up over temporary molds followed by two layers of colded molded planking, one diagonal, one fore and aft. This is a simpler method of building and allows for a frameless hull.

Photos of #123 under construction in our shop can be found on the Custom Boat Building pages of the web site

Construction: strip planked/cold molded

Length: 22 ft 0 in
Beam: 5 ft 6 in
Draft 1 ft 11 in
Displacement: 1900 lbs
Building time: 1500 hours
Skill level: intermediate

Design #123: 6 Sheets
