    2.45 metre and 3.05 metre Clinker Pram Dinghies  Design #206 & 206A
    2.45 metre and 3.05 metre Clinker Pram Dinghies  Design #206 & 206A
    2.45 metre and 3.05 metre Clinker Pram Dinghies  Design #206 & 206A
    Home/Rowboats and a Pedal Boat/2.45 metre and 3.05 metre Clinker Pram Dinghies Design #206 & 206A

    2.45 metre and 3.05 metre Clinker Pram Dinghies Design #206 & 206A

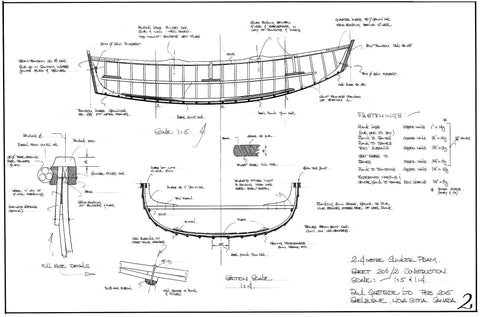

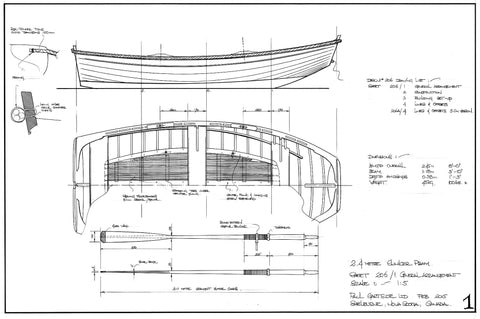

    This plan contains lines, offsets and construction details for a traditional clinker pram dinghy 2.45 metres (8ft 0ins) overall length.  Also included are lines and offsets for a similar pram 3.05 metres (10ft 0ins) overall.  These are both very practical little boats, ideal tenders and a great place to practice traditional skills.

    Construction: Lapstrake on bent frames.  Dimensions in Metric units

    Length: 2.45 metres (8ft 0ins), and 3.05 metres (10ft 0ins)
    Beam: 1.18 metres (3ft 10ins), and 1.32 metres (4ft 4ins)
    Depth amidships: 0.38 metres (1ft 3ins), and 0.44 metres (1ft 5ins)
    Weight: 45kg (100lbs), and 54kg (120lbs)
    Building time: 170 hrs
    Skill level: high

    Design #206: 5 sheets

    $120.00
