37ft Shoal Draft Motor Sailer, Design #267

The latest edition to our family of husky motor sailers is this shoal draft version of plan #108.  These vessels are comfortable all- weather boats ideal for the exploration of rugged coastal waters.  This one has the added virtue of shallow draft and ease of drying out adding greatly to the possibilities for adventure.

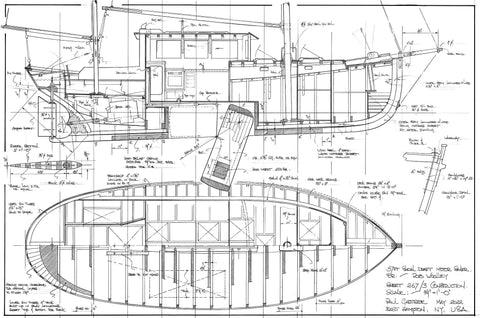

Construction: Double planked over laminated frames.

Length on deck: 37ft 0ins
Length waterline: 32ft 0ins
Beam: 12ft 6ins
Draft: 3ft 0ins and 8ft 0ins
Displacement: 20,750lbs

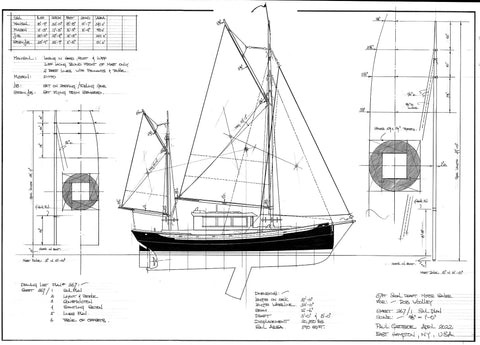

Sailing rig: Gaff Ketch
Sail area: 590 sq ft
Building time: 9000 hours
Skill level: High
