22ft Plywood Sloop Design #289
Here's a flight of fancy, a little boat conjured with no particular customer in mind but as a test bed for ideas which taken together might make an interesting single hander. A simple, light hull of plywood construction, subdivided with watertight bulkheads for strength and safety. A large easily built rig, self tacking for easy handling. A powerful steel fin with lead bulb and integral trim tab. And, oh yes, a small tender built into the aft deck. One for the adventurous.
Construction: Plywood on laminated frames.
Length: 22 ft 0 in
Length waterline: 21ft 3ins
Beam: 8 ft 6 in
Draft, 4 ft 2 in
Displacement: 4000 lbs

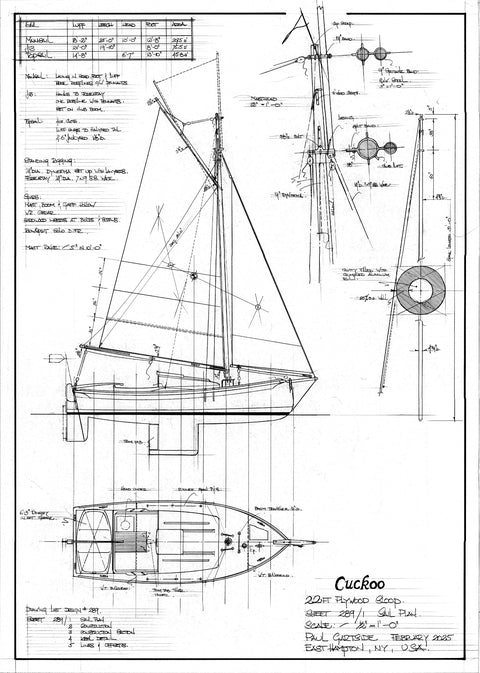

Sailing rig: Gaff Sloop
Sail area: 283 sq. ft
Building time: 2000 hours
Skill level: Intermediate

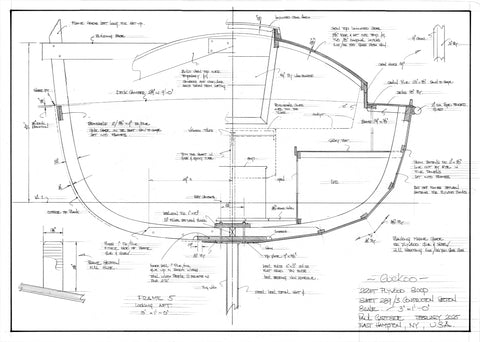

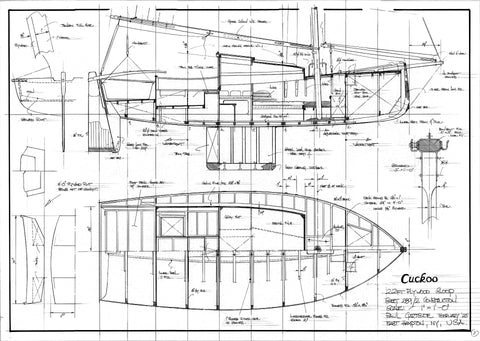

Design #289: 5 Sheets of drawings
