22 ft Electric Launch Design #287

A simple, light,  V- bottom launch intended for electric outboards in the power range 20-30 HP, it is equally suited to gasoline motors. Construction is plywood on sawn frames with a light glassfibre and epoxy skin.  This is a day launch designed for peaceful cruises for two or the whole family.  A straightforward building project for the home builder.  Easily trailerable.

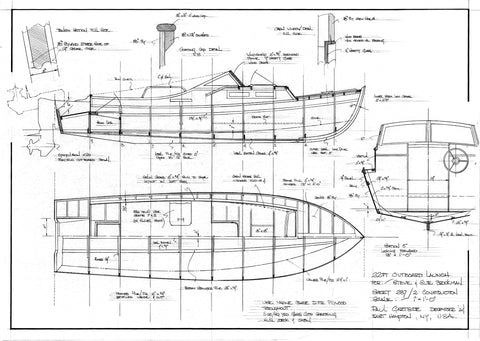

Construction: Plywood on sawn frames

Length:                         22ft 0ins
Length Waterline          20ft 3ins
Beam:                           6ft 2ins
Hull depth amidships   2ft 4ins

Power:                           Electric Outboard
Building time:  1200 hours
Skill level:  Basic

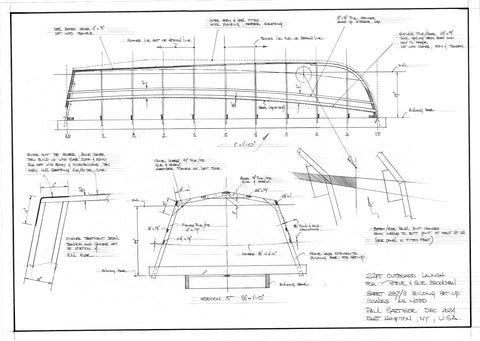

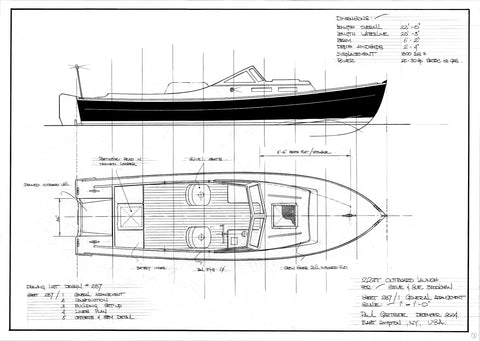

Design #287   Five Sheets
