15ft Flat Bottomed Runabout Design #283

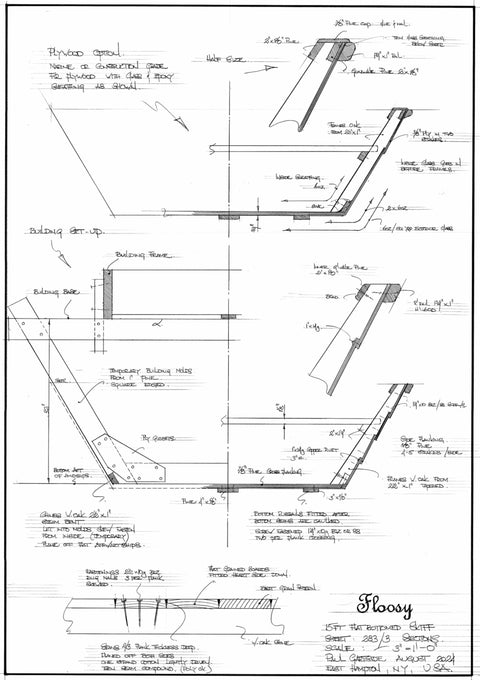

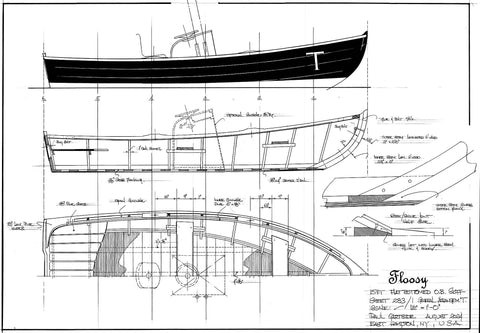

The simplest of outboard runabouts is the flat bottomed skiff. This one is drawn for traditional construction with lapstrake topsides and a cross planked bottom. It is quick to put together from simple materials entailing the minimum of glued work. (An all plywood option is shown on the drawings for those undaunted by epoxy). A most practical boat for knocking about the waterfront.

Construction: Traditional lapstrake sides and cross-planked bottom.

Length: 15 ft. 0 in
Beam: 5 ft. 10 in.
Depth amidships: 1 ft. 8 in.
Power 15HP-20HP Outboard
Building time: 120 hours
Skill level: Basic

Design #283   Three Sheets
