5.0 Metre Motor Launch Design #261

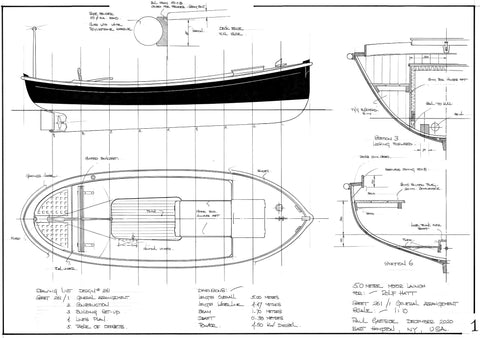

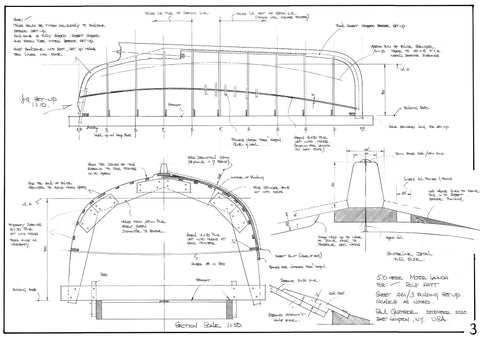

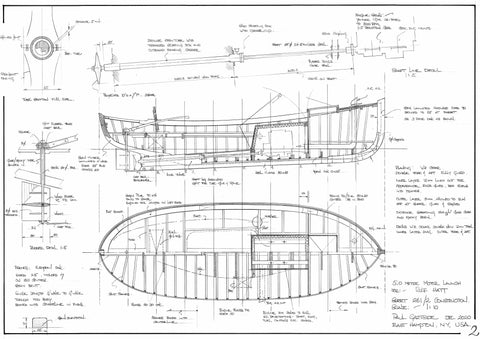

Evolved as a larger version of the 13ft launch design #178, this 16ft boat offers better speed and room for passengers.  Like #178 it is an intricate piece of work and will be an absorbing building project for those with some experience.  The construction method shown on the drawings is double fore and aft planking over steam bent frames for a stable, lasting structure.  Put this one in the heirloom category.

The drawings are in metric units.

Construction: Double planking on bent frames.

Length:                    5.0 metres                   16.40 ft
Length Waterline    4.47 metres                 14.70 ft
Beam                       1.70 metres                   5.60 ft
Draft:                       0.38 metres                   1.25 ft
Displacement:          580 kg                         1275 lbs
Power                       4.50 kw                        6-10 hp
Building time: 1200 hours
Skill level: high

Design #261 Six Sheets
