34ft Motor Cruiser Design #245

Here's a stretched version of  Design #157 offering greater room and comfort for the cruising couple with room for guests.   Moderate power and generous tankage offer range and independence for exploring off the beaten track.  Construction is simple double skin planking over sawn frames and stringers.  With a glass and epoxy skin to minimise upkeep this is an efficient and practical way to build a substantial boat.   This will be a wonderful boat for long distance voyaging under power.

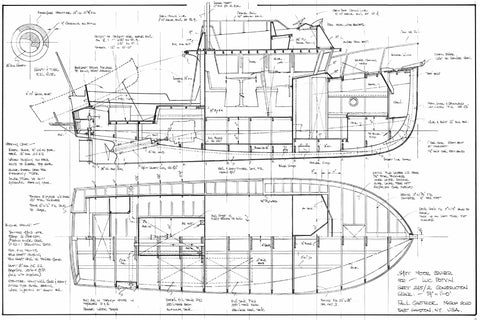

Construction: double planking on sawn frames

Length on deck             34 ft 0 in
Length Waterline          33ft 0ins
Beam                            11ft 4ins
Draft                               3ft 4ins
Displacement                 14,800 lbs
Building time                  5000 hours
Skill level                         Intermediate

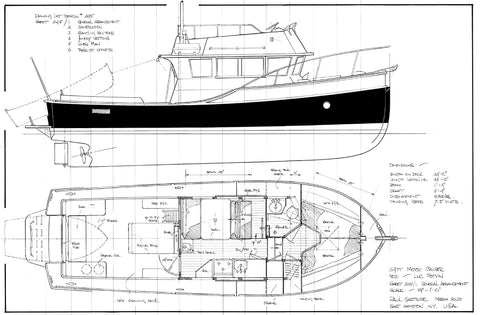

Design #245                 6 Sheets
