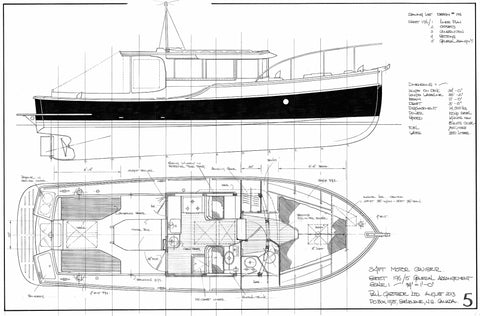

34ft Motor Cruiser, Design #196

A simple 34ft motor cruiser of classic line.  The boat is of V bottom form with double planked topsides and bottom fully glued and sheathed for minimum maintenance.  Speed with the engine shown (100HP diesel) will be 14 knots max, 8 knots cruise.  A very comfortable, rugged boat ideal for long range cruising for two.

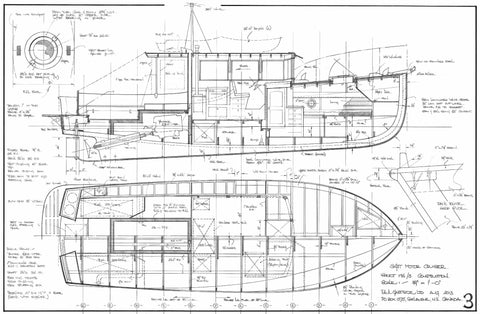

Construction:    Double planked on sawn frames

Length on Deck             34ft 0ins
Length Waterline           33ft 2ins
Beam                             11ft 0ins
Draft                                3ft 5ins
Displacement                  14,500lbs
Power                            100HP Diesel
Building hours                 5000
Skill level                         Intermediate
Design #196                    five sheets
