10.3 Metre Gaff Cutter, Design # 207

The most recent addition to our range of simple transom sterned cutters is this 34ft model. Good headroom and a spacious interior make this a most comfortable cruising boat for the traditionally inclined. Construction is fully glued- triple skin planking on laminated frames and backbone for low maintenance and long life. Plans are drawn in metric units.

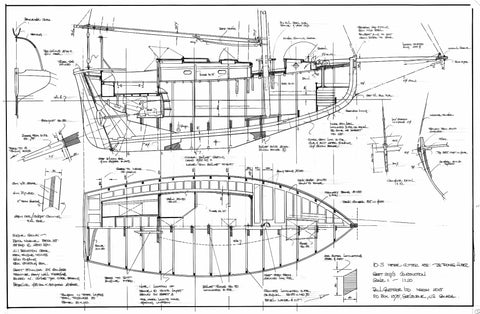

Construction: Triple skin planking on laminated frames.

Length on deck: 10.3 metres             (33ft 9ins)
Length waterline: 9.68 metres           (31ft 9ins)
Beam: 3.82 metres                            (11ft 10ins)
Draft:  1.94 metres                             (6ft 4ins)
Displacement: 11,500kg                    (25,300lbs)
Sailing rig: Gaff cutter
Sail area: 85.7 sq metres (lowers)     (923 sq ft)

Building time: 7000 hours
Skill level: High

Design #207: 8 Sheets
